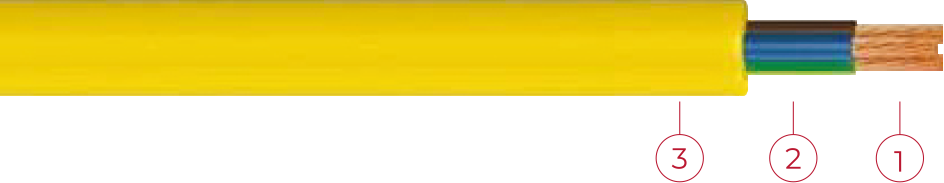

A05V3V3-F

PVC Isolated, Cold Resistant, Multi-Core Flexible Cables
BS 6004
STRUCTURE

Conductor

Fine Multi-Wire Copper

Isolated

Cold Resistant Polyvinyl Chloride

Conductor

Fine Multi-Wire Copper

TECHNICAL SPECIFICATIONS

Max. Operating Temperature

Max. Short Circuit Temperature

Test Voltage

Min. Bending Radius

D 12 ise 5xD
D>12 ise 6xD

Single Cable Vertical Flame Propagation Test

Rated Voltage Uo/U
APPLICATION AREAS

It is used in low-voltage household appliances with little mechanical stress at high temperatures.

TECHNICAL DATA Cu/CR-PVC/CR-PVC
Nominal Section (mm2) Cable External Radius (mm) Approximate Net Weight (kg/km) Conductor Resistance Max ohm/km (20°C) Current Carrying Capacity (mm2)
In the air (A)
A05V3V3-F ARCTIC
2x0,75 6,3 57 26,0 6
2x1 6,6 65 19,5 10
2x1,50 7,8 91 13,3 16
2x2,5 9,1 130 7,98 25
2x4 10,6 184 4,95 32
3x0,75 6,7 68 26,0 6
3x1 7,0 78 19,5 10
3x1,5 8,1 106 13,3 16
3x2,5 9,9 163 7,98 25
3x4 11,3 227 4,95 32
4x0.75 7,3 82 26,0 6
4x1 7,9 100 19,5 10
4x1.5 9,0 134 13,3 16
4x25 10,8 200 4,95 32
4x4 12,3 280 13,3 16
5x0,75 8,1 102 26,0 6
5x1 8,6 120 19,5 10
5x1,5 10,0 166 13,3 16
5x2,5 12,0 249 7,98 25
5x4 13,9 355 4,95 32
