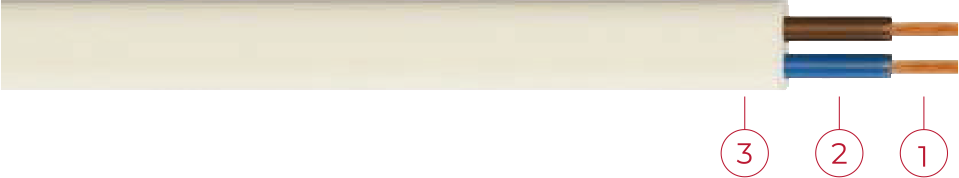

H03V2V2H2-F / H05V2V2H2-F

PVC Isolated, Heat Resistant, Flexible Flat Cables

STANDARDS
TS EN 50525-2-11
BS EN 50525-2-11

STRUCTURE

Conductor

Fine Multi-Wire Copper

Isolated

High Temperature Resistant Polyvinyl Chloride

Outer Shield

High Temperature Resistant Polyvinyl Chloride

TECHNICAL SPECIFICATIONS

Max. Operating Temperature

Max. Short Circuit Temperature

Test Voltage

2kV

Min. Bending Radius

D 12 ise 5xD
D>12 ise 6xD

Single Cable Vertical Flame Propagation Test

Rated Voltage Uo/U

APPLICATION AREAS

It is used in low-voltage household appliances with little mechanical stress at high temperatures.

TECHNICAL DATA	Cu/HR-PVC/HR-PVC
Nominal Section (mm2)	Cable External Radius (mm)	Approximate Net Weight (kg/km)	Conductor Resistance Max ohm/km (20°C)	Current Carrying Capacity (mm2)
				In the air (A)
H03V2V2-F
2x0,50	3,1x5,0	30	39,0	3
2x0,75	3,4x5,5	37	26,0	6
H05V2V2-F
2x0,75	4,0x6,3	47	26,0	6
2x1	4,1x6,6	54	19,5	10
2x1,5	4,5x7,4	70	13,3	16
